IP65 Waterproof Solar Spotlight, Outdoor LED Motion Sensor Floodlight

Usage Process

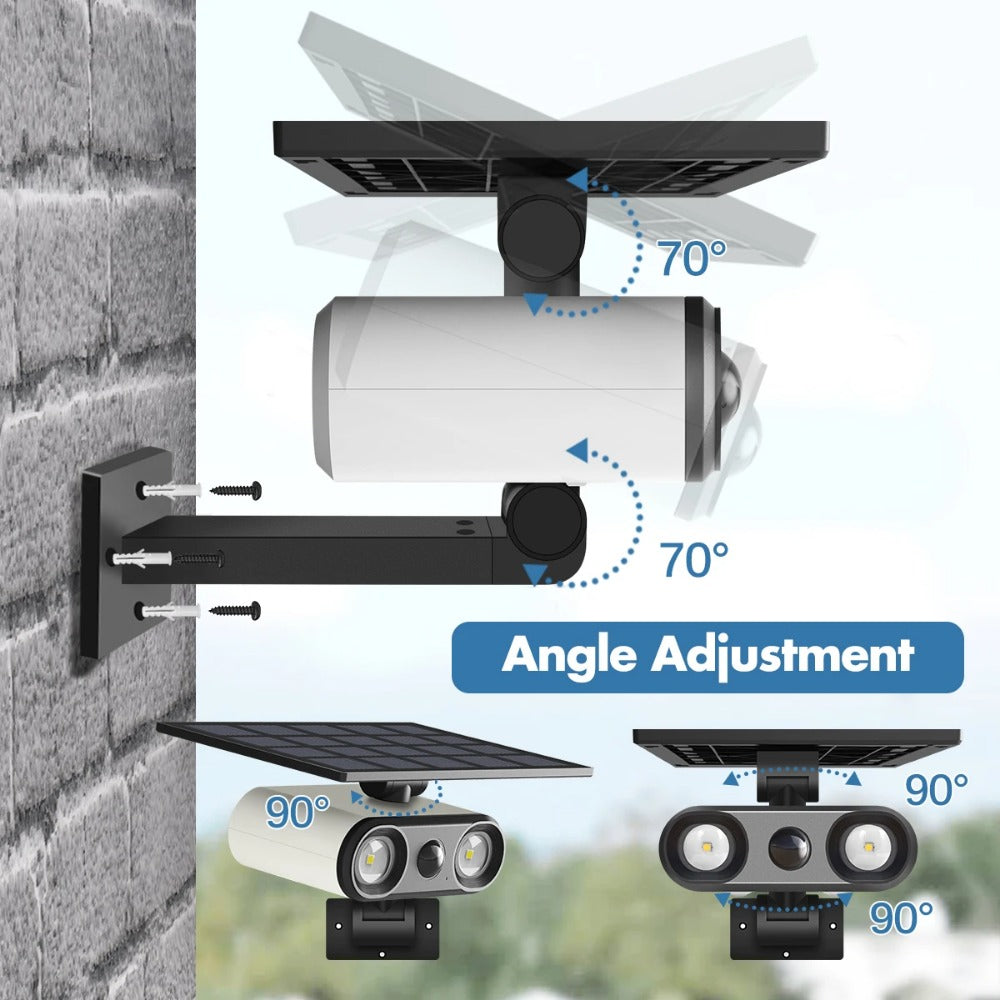

1. The product can be installed and secured to any building wall or outdoor support structure by tightening two screws on the base to secure the expansion rubber plugs.

2. Installation Location_Select a location with ample sunlight to ensure the solar panel can effectively absorb sunlight.

3. Press the POWER button to activate the solar panel, which charges the lithium battery by absorbing sunlight; simultaneously,
the product's human presence-sensing brightness function is activated.

4. Press the MODE button to select the product's functional mode; the corresponding
indicator light will illuminate for 5 seconds before turning off, indicating that the user has completed the mode selection.

5. Note: Upon first power-on, the product's default functional mode is set to Mode 1.

6. Red indicator light_Mode 1. (The product enters motion-sensing mode; if motion is detected at night,
the LED light will illuminate for 40 seconds before turning off.)

7. Green indicator light_Mode 2. (The product enters constant-on mode. When daytime transitions to nighttime,
the LED light remains on at low brightness.)

8. Blue light indicator_Mode 3. (The product enters sensing mode. When someone is detected at night,
the LED light stays on for 40 seconds. When no one is detected, the LED light remains on at low brightness.)

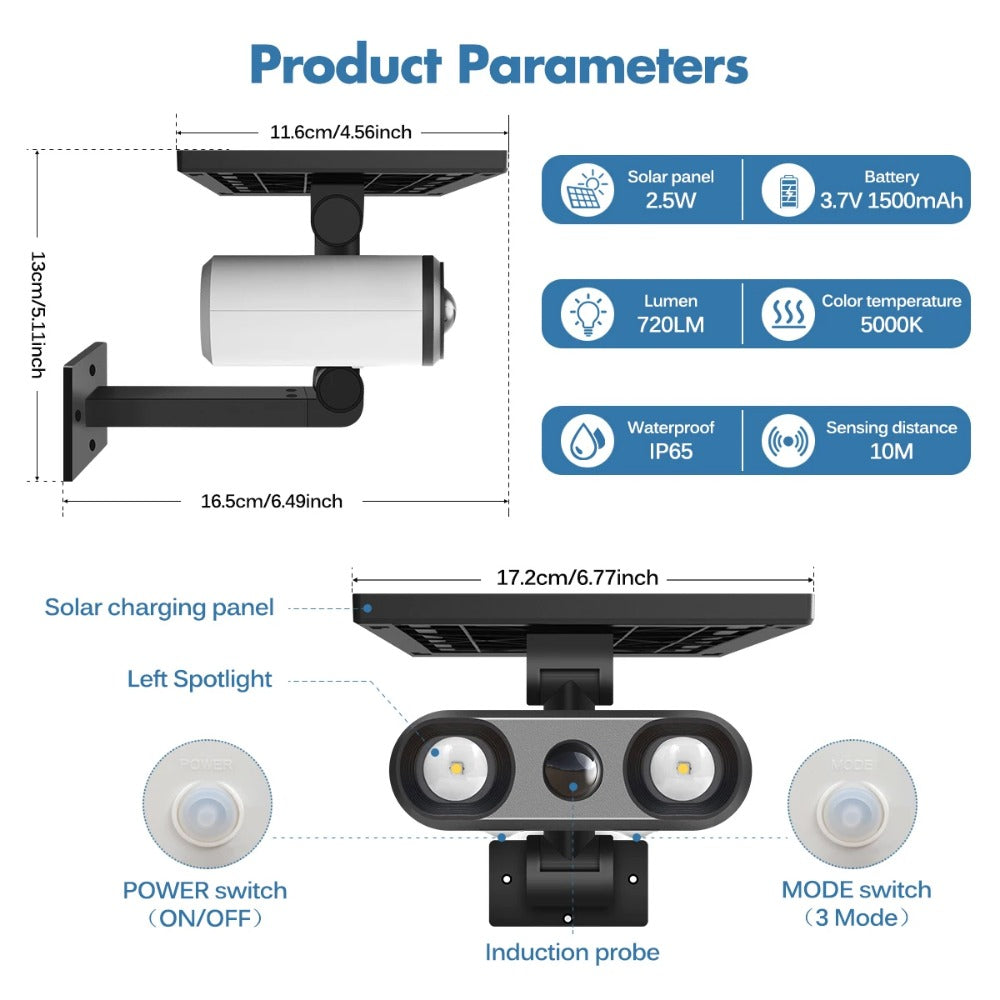

Specifications:

--Solar panel: 5V 2.5W

--Battery: 3.7V 1500mAh lithium iron phosphate battery

--LED lights: 2 x 4W 3535 high-brightness SMD LEDs with 2 convex lenses

--Waterproof rating: IP65

--Material: High-quality ABS
